8101

SHELVING ACCESSORIES

Description

Code

Wine Modules

             Bulk or individual compartment style

             Suitable for 300mm or 450mm shelf units



No.10 Can Module

             Accomdates 6 cans

             Fits any 400mm frame, but is best suited to 900mm size which fits 4 modules per tier



Tray Slides

             Suitable for wire grid shelves only

             capacity for 11 trays









KN010







K11TS

POST SHELVNG

Description

Posts

      • Galvanised or Stainless Steel

      • Manufactured from 1.2mm thick steel

      • Dimensions: 25 x 25mm

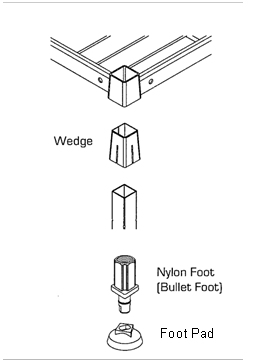

      • Your choice of:  - stainless foot - allows floor fixing and provides 65mm adjustment

                                      - nylon foot (provides 32mm of adjustment)foot pad (distributes load)

                                      - castors - 125mm fit securely to leg



 Shelves

      Wire Grid

            • welded frame

            • 4mm wires and 25mm centreson 8mm supports

      Real Tuff Moulded ABS - Black

            • safe for freezers and dishwasher

      Solid Drop on Shelves

            • galvanised or stainless

      Dunnage Shelves (suitable as bottom shelf)

            • 25mm x 25mm x 1.6 tube frame

            • for extreme loading - up to 400kg per shelf



 Finishes

      • Zinc Electroplate and Lacquer

      • Hot Dip Galvanised

      • Powder Coat

      • Polished Stainless Steel

      • "As Welded" Stainless



 Dimensions

      Length:

            Wire Grid, Solid & ABS Shelves     600mm - 1800mm (increments of 150mm)

            Dunnage Shelves                                 900mm - 1650mm (increments of 150mm)

      Depth

            Wire Grid and Solid Shelves:           300, 375, 450, 525, 600mm

            Moulded ABS Shelves:                    300, 450, 600mm

            Dunnage Shelves                               450, 600mm

      Height

            Standard:   1200mm (3 tier), 1800mm (4 tier), 2000mm (5 tier)



 Extra tiers can be added at your cost.
